System Overview
Euro Pivot™

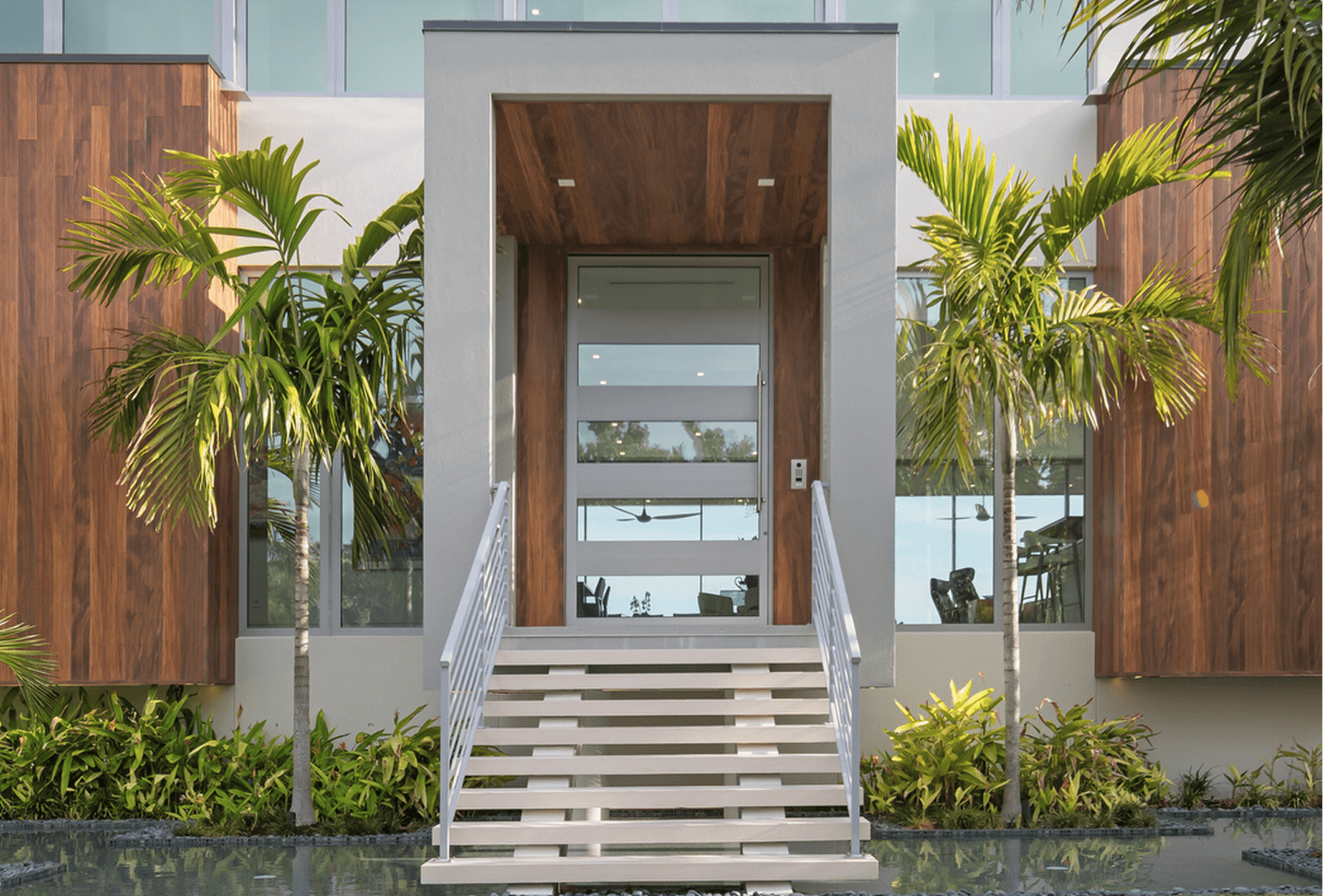

Euro-Wall's Euro Pivot™ door comes in aluminum or aluminum with wood clad. The Euro Pivot™ can be constructed to a height of 14' and a width of 100" providing solutions for non-traditional breathtaking openings. The Euro Pivot™ is a great impact rated Florida Product Approved pivot door option for any commercial or residential application.

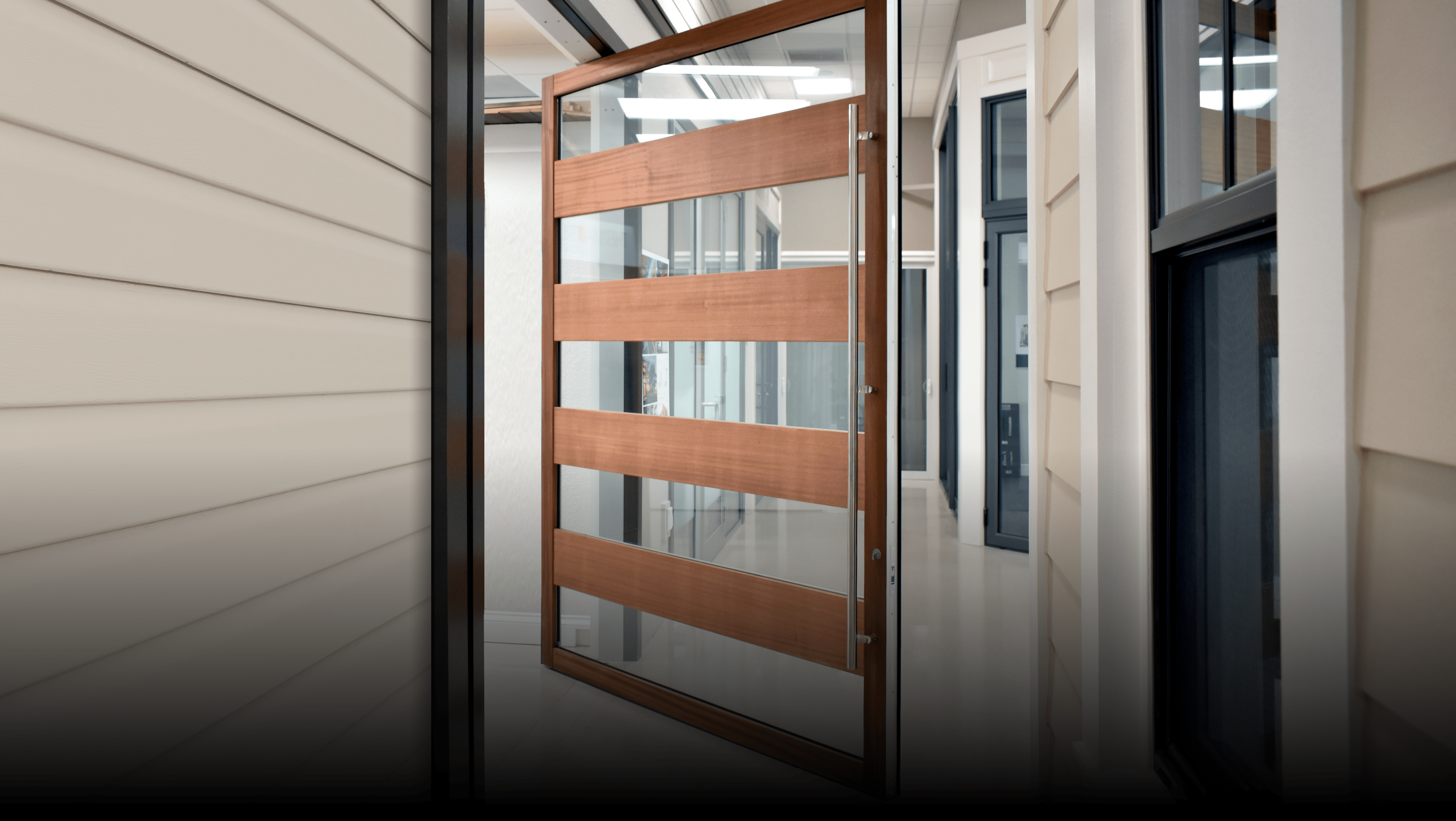

NEW Product Education Video

PRODUCT SPECIFICATIONS
EXTRUSIONS
Extrusions
Extruded aluminum 6063-T5.
Extrusion Finishes
- Clear anodized class 1
- Standard mill finish available for custom colors from Euro-Wall
- White and bronze Kynar coat finish: D2000-AAMA 2605
- Custom powder coat finishes available D3000-AAMA 2604 and 2605. View Our RAL Color Samples
- Interior wood clad finish option
LOCKS & HARDWARE
Hardware
Stainless steel (316SS) components with aluminum hinges.
Twinpoint Hardware
Stainless steel (304SS) & aluminum components.
Lever Lock Sets
Bronze, brushed satin or polished stainless steel.
DSD Multi-point Door Locks
Faceplate, latch and hooks are 304SS.
PRODUCT FEATURES

- Door panels designed for IG, laminated impact and IG impact glass
- Twinpoint hardware in stainless steel (304SS)
- Door panel corner key for strength and security
- Weatherstripping on door panels and frames
- 6063-T5 aluminum profiles in all Euro extrusions
- Stainless steel lever lock set
- Stainless steel (304SS) 5 or 6 point MK2 multi-point door lock
- Optional matching OEM hardware handles
LAYOUT CONFIGURATION SAMPLES
NOTE: The configurations below are just a few examples of the numerous possibilities for Euro Pivot™ Door. All configurations are avaible in aluminum, interior wood clad or an interior/exterior faux wood grain kynar finish.






NOTE: Illustrations 7, 8, & 9 are examples of wood clad/faux wood grain finishes. These configurations are also available in solid color aluminum.



FINISH OPTIONS
Standard Aluminum
Panel Finishes
- Powder coat or Kynar® are available
- Custom faux wood grain finishes available
(View faux wood grain finishes) - Solid colors: custom powder coat finishes available
(View RAL color samples) - Metallic custom powder coat finishes available (not shown)
- Manufacturer color match options
White
Clear
Bronze
Black
Wood Cladding Finishes
Our interior only wood clad finish options include our standard finishes of mahogany / sapele or white oak. Additionally, we offer a variety of exotic wood species for cladding which can be viewed here.
White Oak
Standard Finish
Mahogany / Sapele
Standard Finish
Muntins & Midrails
Customize your door system panels with configurable muntins and midrails. Our muntins and midrails come in either aluminum or wood - you may download the PDF specs for these options below.
Handle Options

White

Brushed Satin

Stainless Steel

Bronze
CUSTOM WOOD CLAD OPTIONS

African Rosewood

Ash

Birch

Curly Maple

Mahogany / Sapele
Standard Finish

Red Oak

Walnut

White Oak
Standard Finish

Zebrawood
TEST PERFORMANCE RESULTS
- Approved for use in Miami-Dade
HVHZ Zone - Florida Building Code Approved
Product Approval FL 22410 - TAS 201 TAS 202 TAS 203
- AAMA / WDMA / CSA 101 / I.S.2
/ A440-08 • NAFS-08 - Air Infiltration: A2
- Water Leakage Resistance: 60 DP
- Wind Load Resistance: 60 DP
- Wind Zone 4 (Hurricane) ASTM (cycling) E1996: DP60
- Wind Zone 4 (Hurricane) ASTM (impact) E1886: Pass
- Tested for Thermal Requirementsf
Design Pressure Charts


CAD Downloads
You must be registered and logged in to view and download CADs on this page. You can login or register below. By registering with our website you acknowledge that any information you acquire is proprietary and can not be shared or distributed unless written consent is granted by Euro-Wall Systems. After you register - you will receive an email link to activate your account so you may access our CAD Downloads.
Euro-Wall 10 Year Warranty
Euro-Wall warrants the products to be free from manufacturing defects for a period of 10 years from the date of purchase. To view our full warranty click here.
